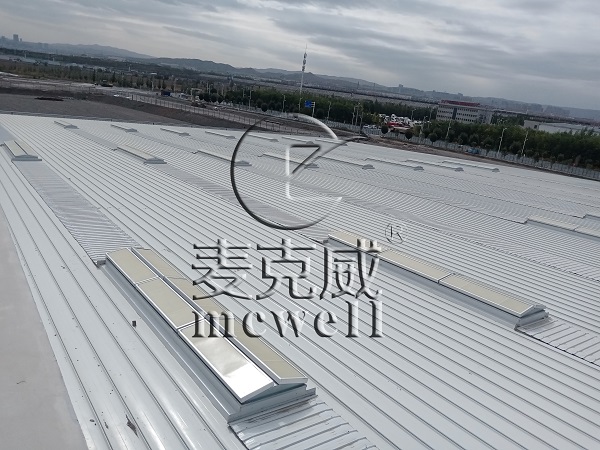

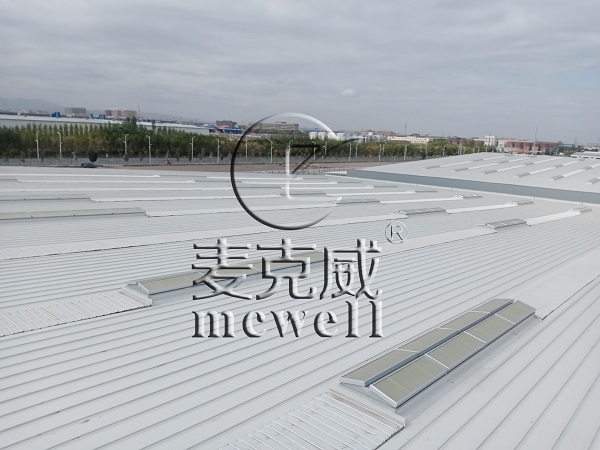

The smoke hatch skylight is an electric lighting and smoke exhaust skylight with beautiful appearance and ideal ventilation and lighting effect. It is suitable for buildings with lighting, fire-fighting and smoke exhaust as the mainstay, and ventilation as a supplement. When the smoke ventilator is fully opened, the amount of smoke exhaust is the largest. It has triangular structure, good self-cleaning function. Because smoke vent is controlled by electricity, it is easy to operate.
| Ventilator code |
Inner size of throat (width*length) (mm) |
Ventilator dimensions (width * length) (mm) |
Ventilator height (mm) |
| C1XT—1010n(15n,20n,25n,30n) | 1000*1000n(1500n,2000n,2500n,3000n) | 1200*（L+200） | 430 |
| C1XT—1510n(15n,20n,25n,30n) | 1500*1000n(1500n,2000n,2500n,3000 n) | 1700*（L+200） | 560 |
| C1XT—2010n(15n,20n,25n,30n) | 2000*1000n(1500n,2000n,2500n,3000 n) | 2200*（L+200） | 680 |
| Ventilator code |
Inner size of throat (width*length) (mm) |
Ventilator dimensions (width * length) (mm) |
Ventilator height (mm) |
| C1ST—1010n(15n,20n,25n,30n) | 1000*1000n(1500n,2000n,2500n,3000n) | 1200*（L+200） | 240 |
| C1ST—1510n(15n,20n,25n,30n) | 1500*1000n(1500n,2000n,2500n,3000 n) | 1700*（L+200） | 265 |
| C1ST—2010n(15n,20n,25n,30n) | 2000*1000n(1500n,2000n,2500n,3000 n) | 2200*（L+200） | 290 |
The automatic opening vent window’s size can be customized according to client’s requirement.
