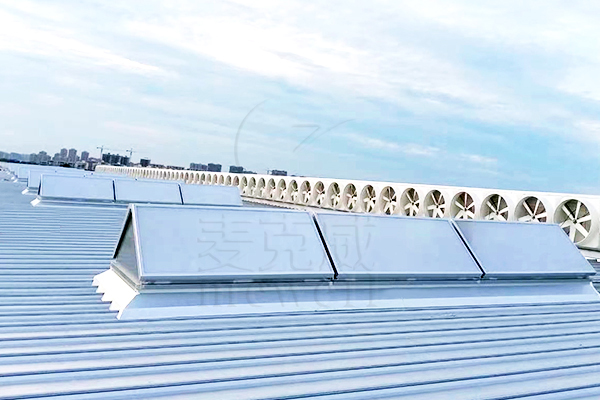

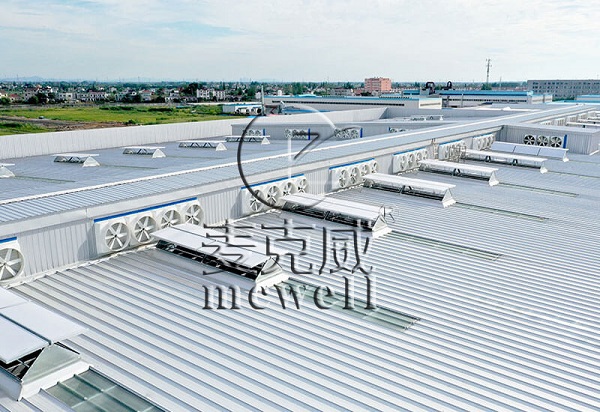

The triangular smoke and heat vents have the functions of fire-fighting smoke exhaust, ventilation and lighting. The triangular shape has the characteristics of stable structure and good self-cleaning. The slope design is good for drainage and not easy to accumulate snow. Smoke vent is frequently purchased by business owners in various industries.
| Ventilator code |
Inner size of throat (width*length) (mm) |
Ventilator dimensions (width * length) (mm) |
Ventilator height (mm) |
| C1ST—1010n(15n,20n,25n,30n) | 1000*1000n(1500n,2000n,2500n,3000n) | 1200*（L+200） | 240 |
| C1ST—1510n(15n,20n,25n,30n) | 1500*1000n(1500n,2000n,2500n,3000 n) | 1700*（L+200） | 265 |
| C1ST—2010n(15n,20n,25n,30n) | 2000*1000n(1500n,2000n,2500n,3000 n) | 2200*（L+200） | 290 |
| Ventilator code |
Inner size of throat (width*length) (mm) |
Ventilator dimensions (width * length) (mm) |
Ventilator height (mm) |
| C1XT—1010n(15n,20n,25n,30n) | 1000*1000n(1500n,2000n,2500n,3000n) | 1200*（L+200） | 430 |
| C1XT—1510n(15n,20n,25n,30n) | 1500*1000n(1500n,2000n,2500n,3000 n) | 1700*（L+200） | 560 |
| C1XT—2010n(15n,20n,25n,30n) | 2000*1000n(1500n,2000n,2500n,3000 n) | 2200*（L+200） | 680 |
The smoke ventilator’s size can be customized according to client’s requirement.
