Roof Smoke Vent

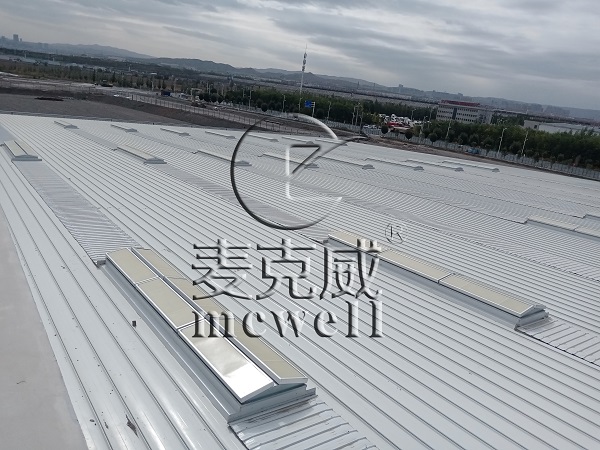

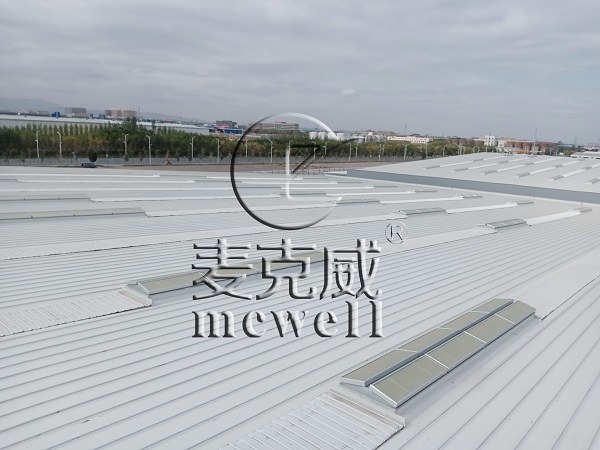

Roof smoke vent is mainly used in industrial plants. The roof slope of the plant is in the range of 2%-10%, and the local wind pressure must be less than 900Pa. Among them, the smoke vent is made of color steel plate with a thickness of 0.6mm. There are three control modes for the electric smoke ventilator of the factory building: general control, intelligent control, and intelligent network control.

Advantages:

1. There are three control modes: general control, intelligent control, and intelligent network control. All these three control modes can realize firefighting linkage.
2. "Nail-free and Glue-free" technology can completely eliminate water leakage.

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1ST—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	240
C1ST—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	265
C1ST—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	290
