Daylighting Smoke Vent

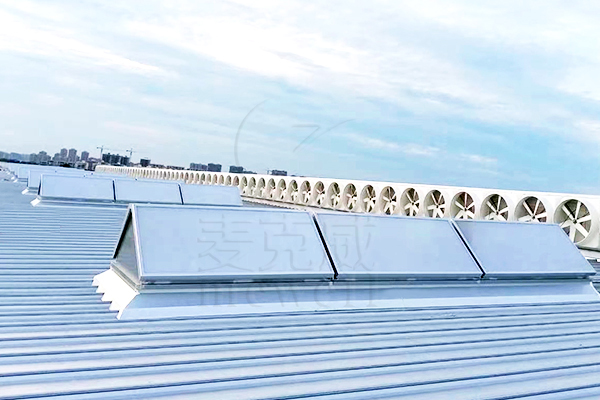

Triangular daylighting smoke vent has a good purification and improvement effect for the interior space of the plant, and can provide a good ventilation and smoke exhaust environment for the interior of the plant.

Advantages:

1. Low height, low wind resistance and good wind resistance.
2. The opening angle is 90 degrees, and the effective vents are consistent with the smoke vents, which meets the ventilation requirements of the building.
3. Good natural lighting effect and lighting efficiency.
4. Fully automatic opening mode to realize the linkage control of firefighting.

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1ST—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	240
C1ST—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	265
C1ST—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	290

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1XT—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	430
C1XT—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	560
C1XT—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	680

Scope of Application:

1. The smoke ventilator is suitable for natural lighting, ventilation and smoke exhaust of the roofs of industrial and civil buildings.
2. The smoke ventilation is suitable for buildings with a roof slope of 2%-10%.
3. The smoke vent system is suitable for areas where the basic wind pressure is less than or equal to 900pa.

Waterproof Method:

"Nail-free and glue-free waterproof structure patented technology" do not require any silica gel, self-tapping nails, drilling or rivets; the window sash and the window body are all integrated holistically into the waterproof structure, there is no self-tapping screw, rivet, screw or bolt that destroy the integrated structure, and waterproofing completely relies on its own structure.
