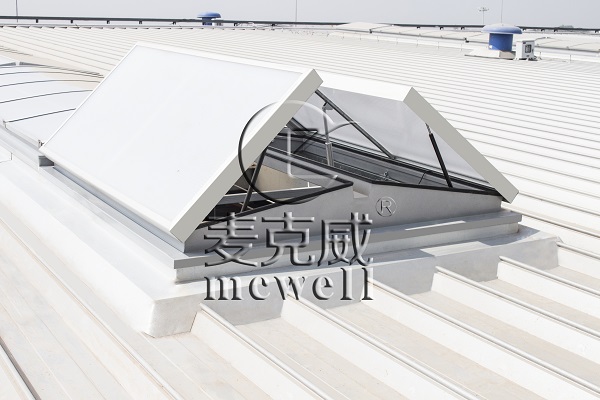

The automatic smoke vent mainly uses the heat pressure and wind to achieve the ventilation. The smoke vent rooflight adopts electric control with one-button opening and closing. So it is convenient to operate. When the roof smoke vent skylights sash is opened, the smoke exhaust and ventilation are automatically performed. On the premise of satisfying the ventilation, it is also necessary to ensure the waterproof performance . The automatic smoke vent adopts the technology of "nail-free and glue-free waterproof structure", which avoids the hidden danger of leakage caused by the easy aging of silica gel.
| Ventilator code |
Inner size of throat (width*length) (mm) |
Ventilator dimensions (width * length) (mm) |
Ventilator height (mm) |
| C1ST—1010n(15n,20n,25n,30n) | 1000*1000n(1500n,2000n,2500n,3000n) | 1200*（L+200） | 240 |
| C1ST—1510n(15n,20n,25n,30n) | 1500*1000n(1500n,2000n,2500n,3000 n) | 1700*（L+200） | 265 |
| C1ST—2010n(15n,20n,25n,30n) | 2000*1000n(1500n,2000n,2500n,3000 n) | 2200*（L+200） | 290 |
The size can be customized according to client’s requirement.
