Triangular automatic opening smoke vents have beautiful appearance and ideal ventilation and lighting effect. Because of the outstanding advantages, smoke vent is widely used for many different industries.
Good ventilation performance. The effective ventilation vent of the smoke ventilator is basically same with roof vent
Good lighting performance. The main body of the window sash is composed of FRP lighting board, which determines its good lighting performance and beautiful practicality
The opening angle can be controlled by electricity. the opening angle can be set according to client's needs.
|
Ventilator code |
Inner size of throat |
Ventilator dimensions |
Ventilator height |
|
C1ST—1010n(15n,20n,25n,30n) |
1000*1000n(1500n,2000n,2500n,3000n) |
1200*（L+200） |
240 |
|
C1ST—1510n(15n,20n,25n,30n) |
1500*1000n(1500n,2000n,2500n,3000 n) |
1700*（L+200） |
265 |
|
C1ST—2010n(15n,20n,25n,30n) |
2000*1000n(1500n,2000n,2500n,3000 n) |
2200*（L+200） |
290 |
|
Ventilator code |
Inner size of throat |
Ventilator dimensions |
Ventilator height |
|
C1XT—1010n(15n,20n,25n,30n) |
1000*1000n(1500n,2000n,2500n,3000n) |
1200*（L+200） |
430 |
|
C1XT—1510n(15n,20n,25n,30n) |
1500*1000n(1500n,2000n,2500n,3000 n) |
1700*（L+200） |
560 |
|
C1XT—2010n(15n,20n,25n,30n) |
2000*1000n(1500n,2000n,2500n,3000 n) |
2200*（L+200） |
680 |
Size can be customized according to client’s requirement.

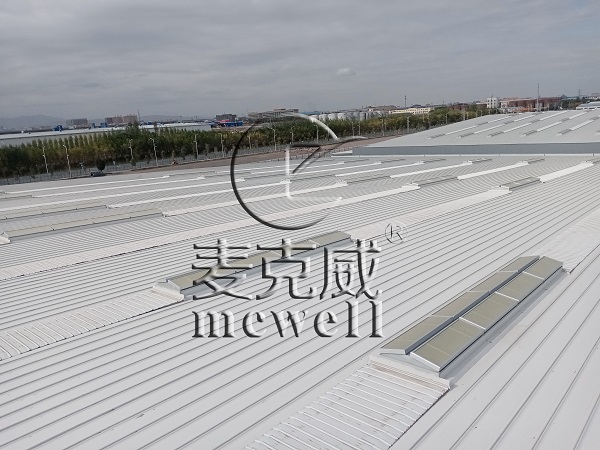

Smoke vent is widely used for production workshops in multiple industries such as automobile, logistics, airports etc.
"Nail-free and glue-free waterproof structure" patented technology can completely eliminate water leakage.
